Formfeld
Cart - 0

JLL

Project Location:

Munich

Completion:

2022

Client:

JLL

Structure:

FF2

Solid-oak reception counter for the Munich headquarters of JLL. Triangulated relief based on a modified Formfeld 2 structure.

JLL reception counter in solid oak with Formfeld 2 relief (Munich)
A central focus of the design is the monolithic appearance of the counter, crafted entirely from a single material. The smooth surface is partially adorned with a relief pattern based on our proprietary Formfeld 2 structure. This structure is defined by a gradual transition from a flat plane to triangulated segments. The irregular, non-repetitive depth variation of the triangles increases toward the upper edge of the counter front.
In contrast to the execution for the law firm Zirngibl, where the same structure was used, the triangle proportions were adjusted here to create a rhombus-like appearance. The pattern continues seamlessly over the rounded counter edge, which required heightened technical precision in both CNC milling and mitered joining. The L-shaped counter measures approximately 3.8 by 2.7 meters and was completed in 2022.

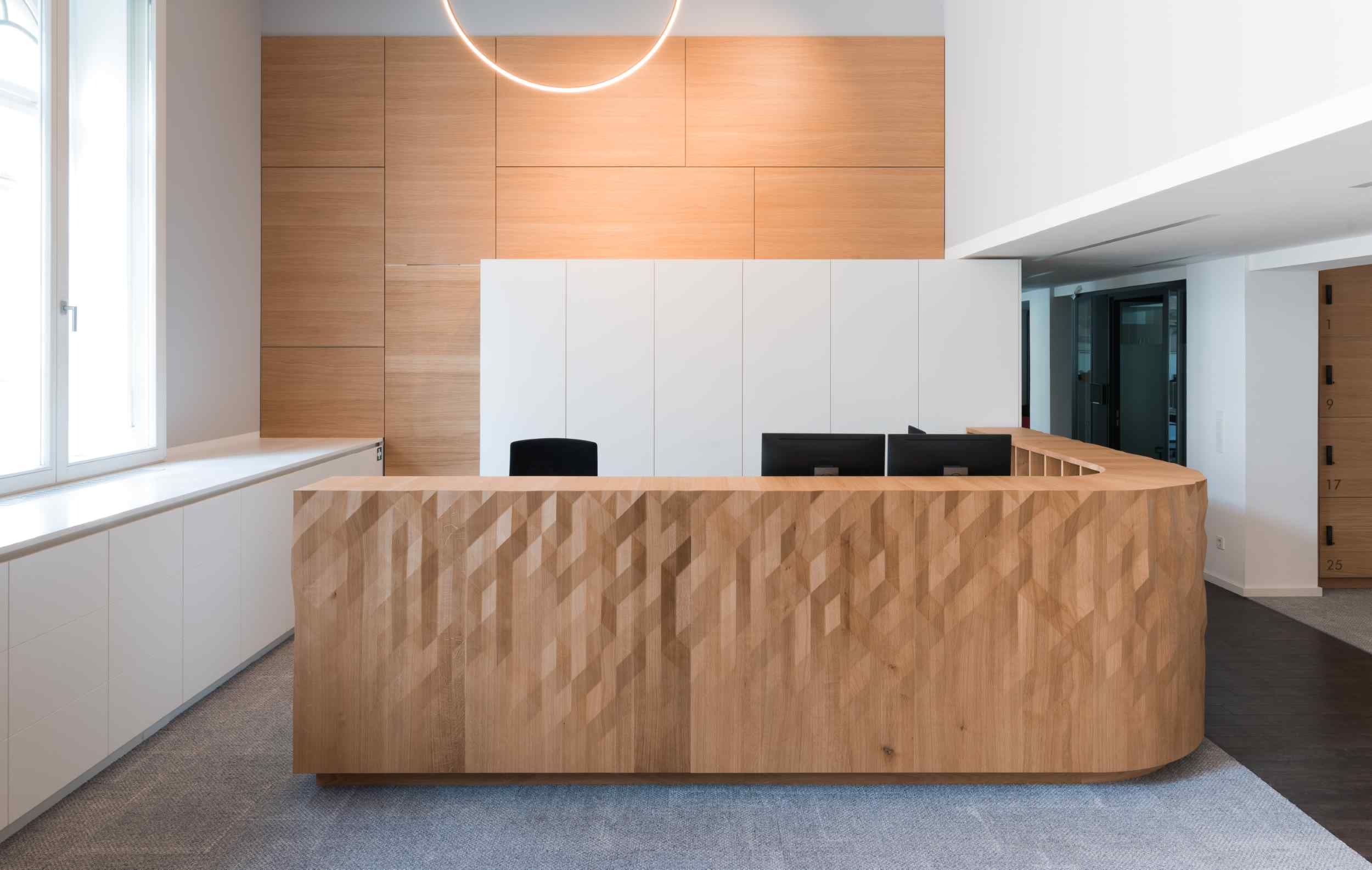

Front view of reception counter - Formfeld 2 structure

Front view of the reception counter

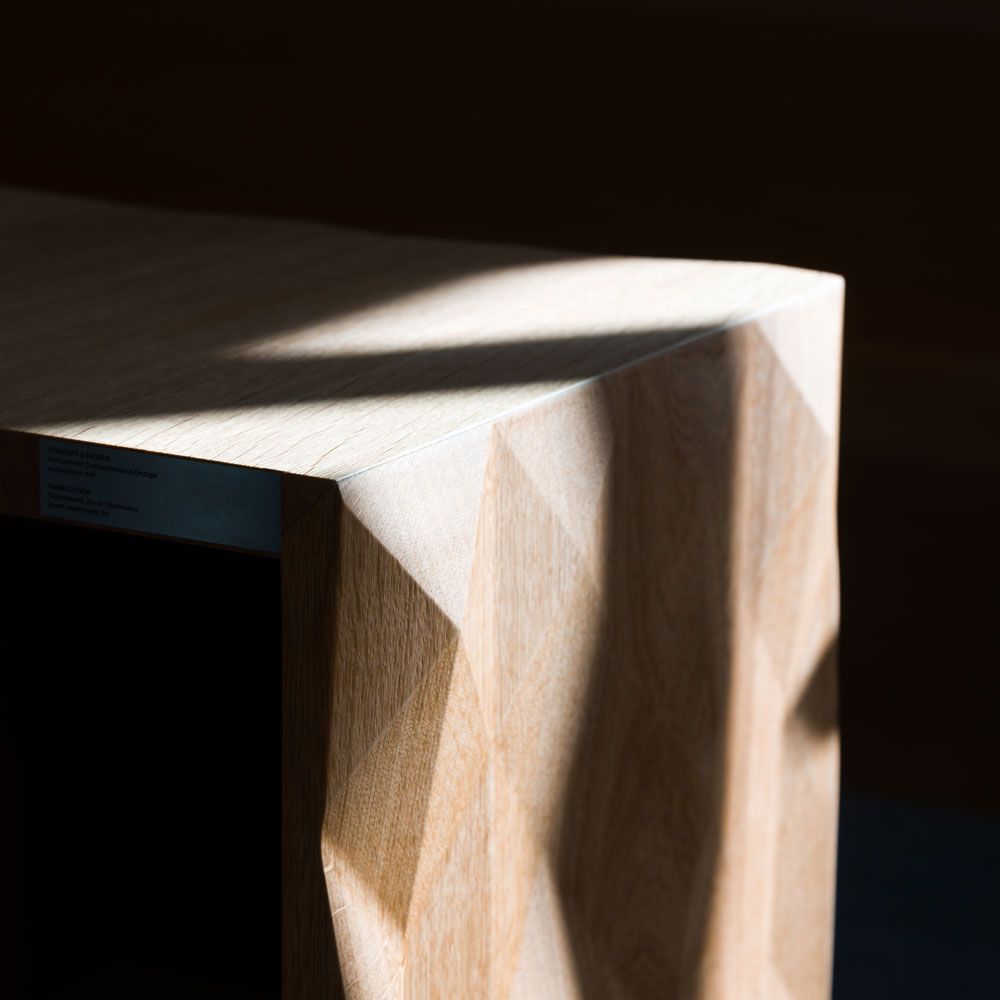

Formfeld 2 structure continuing across rounded counter edge

Structure Formfeld 2 across rounded counter

Transition from smooth counter to faceted side panel

Transition from counter surface to faceted side panel

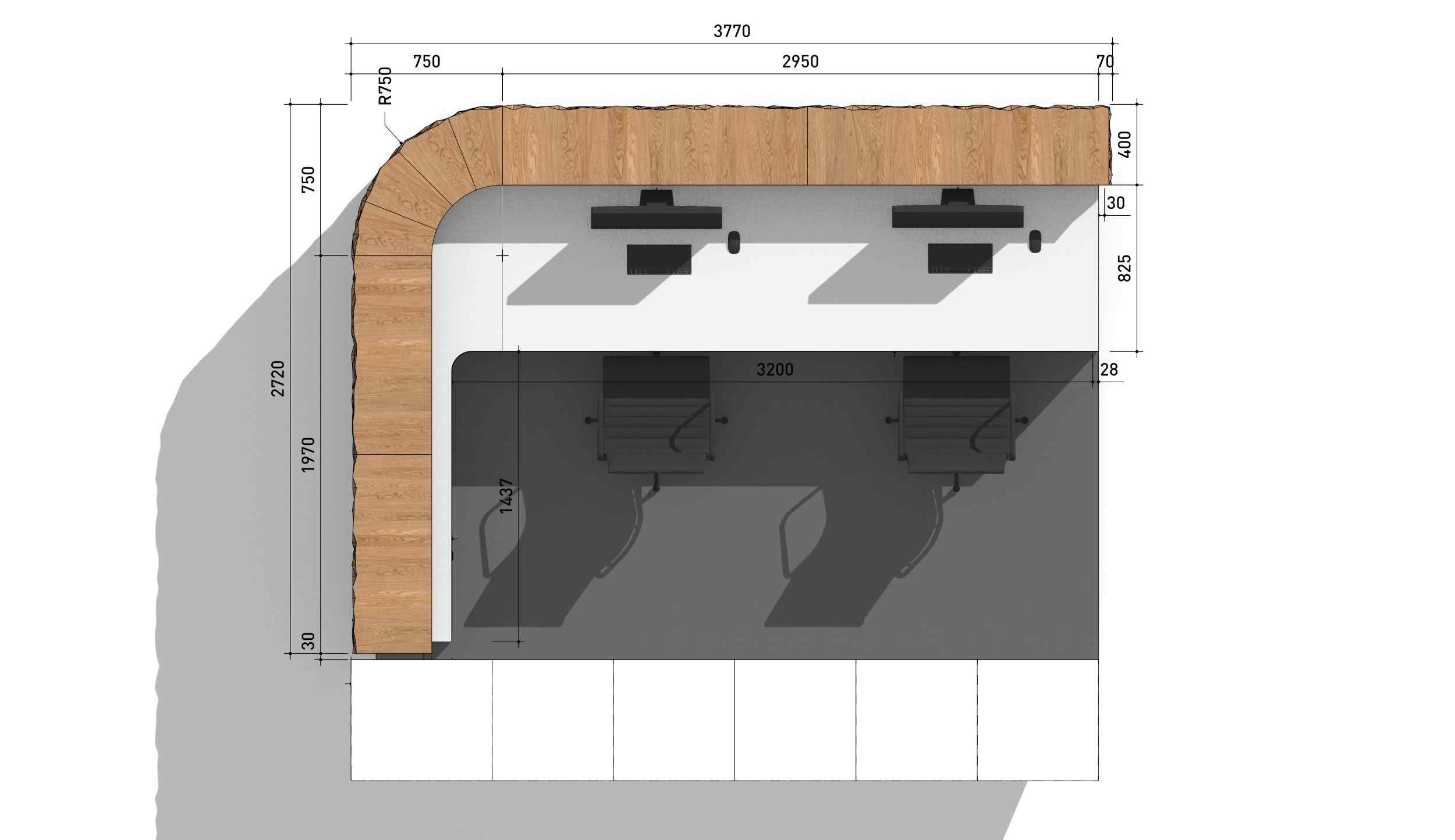

Plan view of reception counter layout with Formfeld 2 Structure

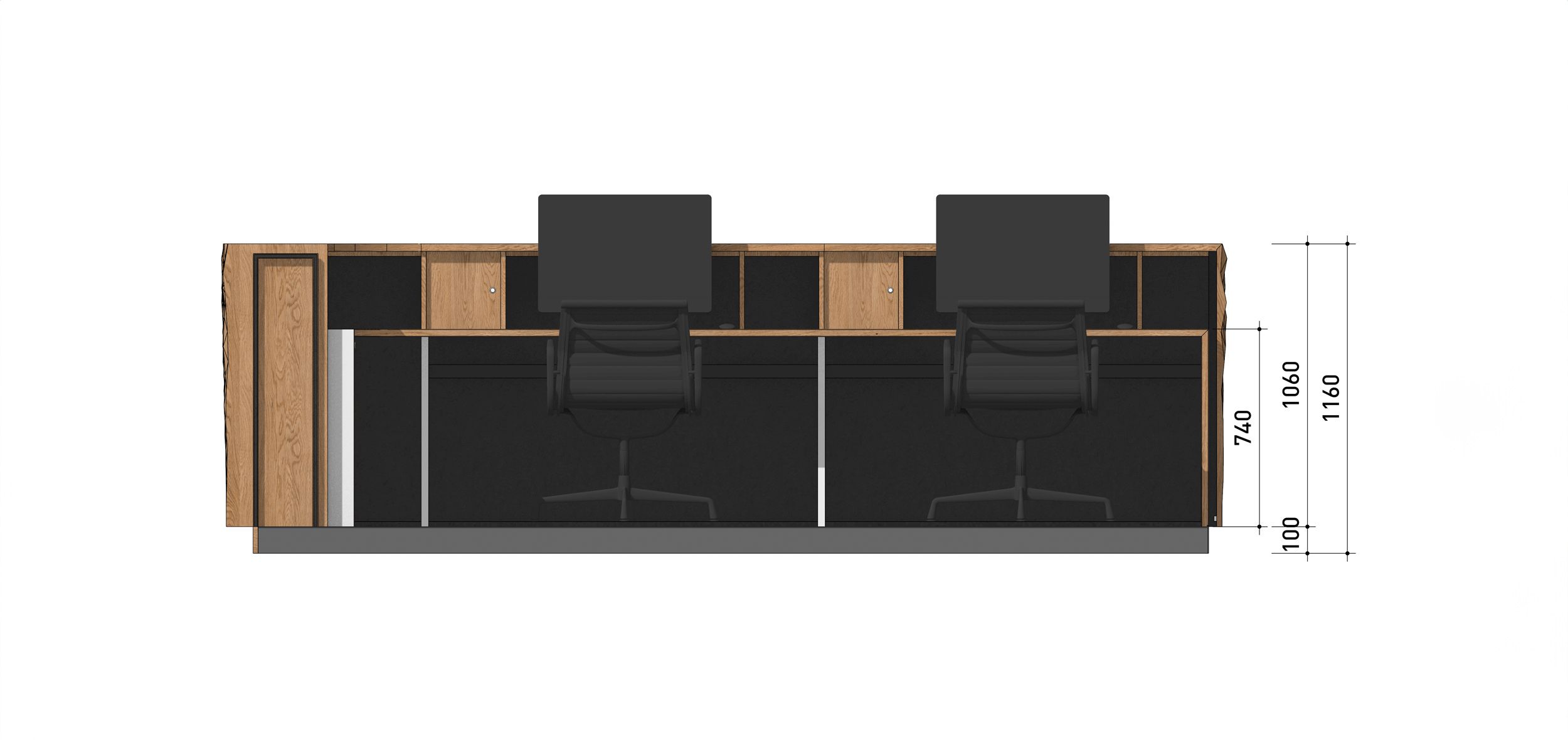

Back view of the reception counter

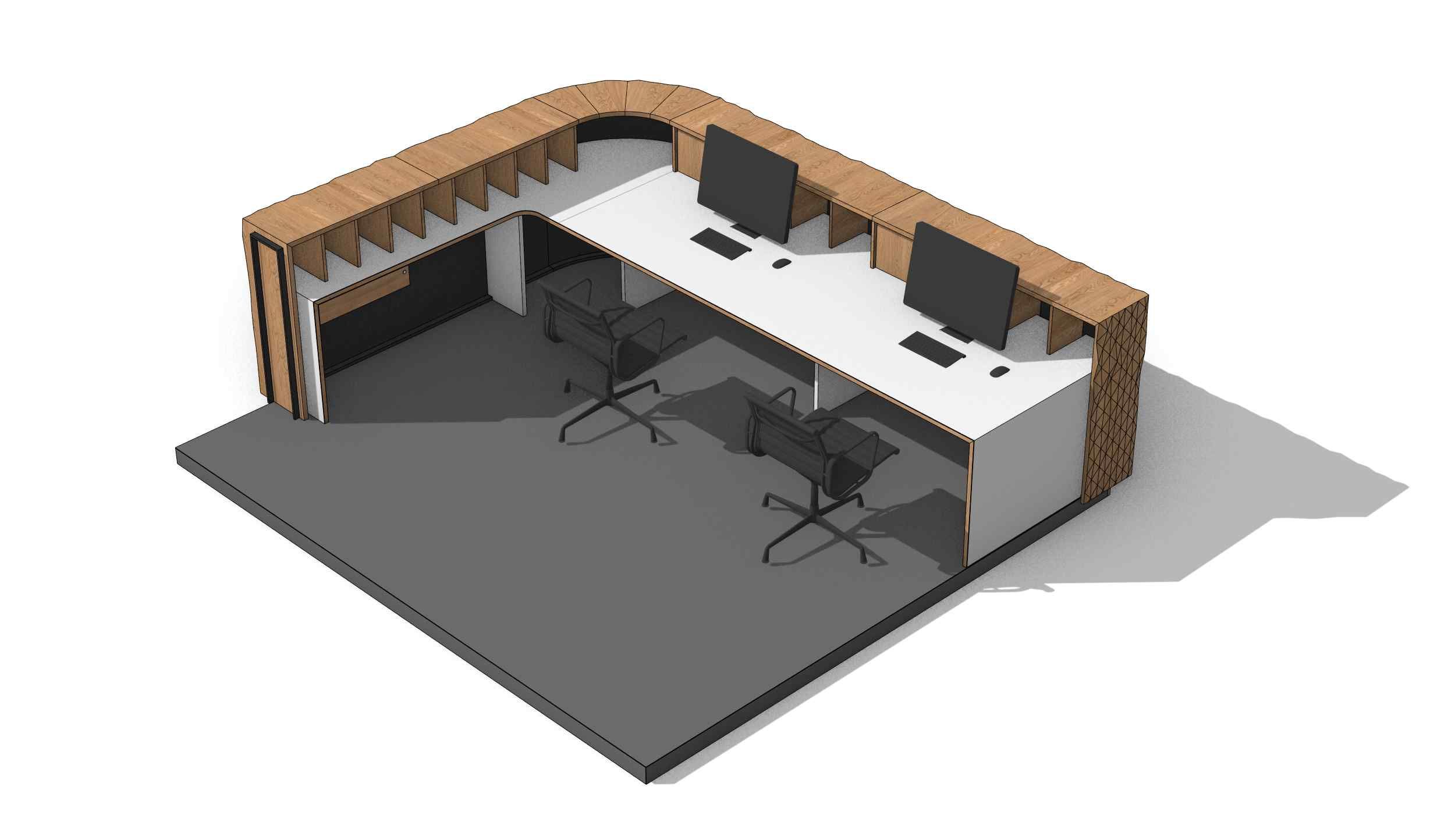

3D Model of the counter
